Let's remove/install the Kidney Grills

Tools Required
T-30 Torx Driver
Right Angle Tool
Flashlight
Flat Blade Screwdriver

Removing the Kidney Grills

With the hood open, begin by removing the 4 T-30 Screws above the kidney grills and set them aside.




You will also want to lift the strip of insulation at the front of the hood off of it’s sleeve. You remove it by pulling up.


The Kidney Grills are held in with 6 clips. There are three along the top edge, one along the side toward the light and two along the bottom. If you are replacing the Kidney Grills, look at the new Grills: you will see the locations of the clips. To remove the kidney grills, you need to lift the two clips along the bottom of the grills. The easiest way to do this is with a right angle tool. They are available from Sears and are a handy tool to have. Sears part number: 00999802000 ($12.99). Sears carries a few different varieties.




You will want to begin by undocking the two lower clips. You will be able to see them in between the slats in the grill. You may need a flashlight to help you locate them. Once you have located them, insert the right angle tool to lift the center section of the clip and lift up. You will want to use your free hand to gently pull the grill toward you. You will want to prevent the grill from re-docking itself so once you have one side unclipped, keep enough pressure outward so it does not go back in.








With the lower clips undocked, you can begin working on the upper clips. In order to access the clips, you want to pull up on the bumper trim and if you look in from the engine compartment, you will see the three clips. Use a flat blade screwdriver or the pointed end of the pick to push the clips down.






As you did with the lower clips, gently pull the grill toward you to keep the clips from re-engaging. Once you have the 3 upper clips undocked, you can pull the grills out.


Installing the new Kidney Grills

To install the new grills, simply line them up and push them in until you hear the clips engage. Once you have both grills installed, replace the 4 T-30 Screws and tighten them down. Re-install the strip of insulation.





If you follow this DIY , please post a thank you.
AndyM is offline
0
Reply With Quote
      04-17-2008, 12:01 PM   #2
Templedogg
Captain

Drives: 135i, Trailblazer SS, 1934 PU
Join Date: Oct 2007
Location: Lake Stevens, WA

Posts: 799
iTrader: (1)

Great DIY! Thanks.
__________________
Templedogg is offline
0
Reply With Quote
      04-20-2008, 01:08 PM   #3
SlickShift
Major

SlickShift's Avatar

Drives: '06 Z4MR
Join Date: May 2007
Location: Tampa, FL

Posts: 1,349
iTrader: (3)

Thanks for the DIY. I was wondering what "right-angled tools" everyone was using.
__________________
-Nick
2006 BMW Z4M Roadster
Interlagos Blue
/Sepang Bronze/Aluminum
Retired: '00 323i, '06 325Ci, '09 135i
SlickShift is offline   United_States
0
Reply With Quote
      04-27-2008, 02:30 AM   #4
Oregon
NRA Life Member, BMW CCA 25-year member

Oregon's Avatar

Drives: 08' 135i, HPE & SSK & 04' M3
Join Date: Aug 2007
Location: Oregon

Posts: 2,590
iTrader: (0)

Thank you very much for this DIY. Today, I ordered a set of 128 nostrils/kidneys, I see the black grill bars as far more attractive on a black car than the stock 135 item which has chrome grill bars.
__________________
Resigned 1ADDICTS Moderator


“To disarm the people is the best and most effective way to enslave them.” – George Mason
Oregon is offline   United_States
0
Reply With Quote
      04-27-2008, 03:19 AM   #5
Oregon
NRA Life Member, BMW CCA 25-year member

Oregon's Avatar

Drives: 08' 135i, HPE & SSK & 04' M3
Join Date: Aug 2007
Location: Oregon

Posts: 2,590
iTrader: (0)

The parts should arrive at the dealer late next week, weekend install, pics Saturday evening?
__________________
Resigned 1ADDICTS Moderator


“To disarm the people is the best and most effective way to enslave them.” – George Mason
Oregon is offline   United_States
0
Reply With Quote
      04-27-2008, 07:04 AM   #6
AndyM
Lieutenant

AndyM's Avatar

Drives:
Join Date: Sep 2007

Posts: 530
iTrader: (2)

Quote:
Originally Posted by Surname View Post
Thank you very much for this DIY. Today, I ordered a set of 128 nostrils/kidneys, I see the black grill bars as far more attractive on a black car than the stock 135 item which has chrome grill bars.
I did this on my Montego 135. The shadowline/tii grills were too black and the 135 grills were too chrome. I like the 128 grills quite a bit better than either.
AndyM is offline
0
Reply With Quote
      04-27-2008, 07:59 AM   #7
Chop79
Second Lieutenant

Drives:
Join Date: Feb 2008

Posts: 293
iTrader: (0)

Garage List
2008 135i  [0.00]
I think the chrome grills look much better. The shadow grills almost look like nothing is there. IMO IMO IMO:wink:
__________________
2008 135i
Alpine White, Black'ette/High Gloss, Sport, CA, Heated Seats, iPod Adaptor, Premium hifi, Sirius, BMW Assist
Chop79 is offline
0
Reply With Quote
      04-27-2008, 10:35 PM   #8
One&Only
Only 1 n Rome

One&Only's Avatar

Drives: '08 135i Coupe
Join Date: Jul 2007
Location: Rome

Posts: 159
iTrader: (0)

Quote:
Originally Posted by Chop79 View Post
I think the chrome grills look much better. The shadow grills almost look like nothing is there. IMO IMO IMO:wink:
need a PIX really bad....dunno what i want unless I see sumpin pleeeeezzzz! Dark kidney's will look deadly on my car...but what shade of dark:iono:
__________________
Drives a Sawed-Off Shotgun
135i/SGM/Terra/Gray Poplar/Sport Pac/H&R Sport Springs & Sways/Heated Seats/Premium HI-FI/Sat
One&Only is offline   United_States
0
Reply With Quote
      04-27-2008, 11:14 PM   #9
hitthemark41
Second Lieutenant

Drives:
Join Date: Feb 2008

Posts: 282
iTrader: (0)

Send a message via Yahoo to hitthemark41
Quote:
Originally Posted by Surname View Post
Thank you very much for this DIY. Today, I ordered a set of 128 nostrils/kidneys, I see the black grill bars as far more attractive on a black car than the stock 135 item which has chrome grill bars.
Just curious about the 128s...are they still chrome trimmed? I have a 135 BSM (obvious by my sig sorry lol) on order...and am looking for "the look"......just afraid the shadowline might be TOO dark for the sapphire metallic. Thanks for any info/opinions anyone has!
__________________

2008 (Year 1 of the One ) 135i
Black Sapphire Metallic/Savanna Beige/
Gray Poplar/6MT/Sports & Premium pkgs/CA/Heated Seats/HD/PDC
Mods:35% tint / clear bra / Perf. pedals
hitthemark41 is offline
0
Reply With Quote
      04-27-2008, 11:36 PM   #10
Oregon
NRA Life Member, BMW CCA 25-year member

Oregon's Avatar

Drives: 08' 135i, HPE & SSK & 04' M3
Join Date: Aug 2007
Location: Oregon

Posts: 2,590
iTrader: (0)

128 kidneys have the chrome surround with black grill bars, as my 135 is JB, I thought the 128 kidneys would be more aesthetically pleasing, it plain looks better without chrome grill bars, at least, to me, plus, it's my car. Ha, ha...:biggrin:
__________________
Resigned 1ADDICTS Moderator


“To disarm the people is the best and most effective way to enslave them.” – George Mason
Oregon is offline   United_States
0
Reply With Quote
      04-29-2008, 02:21 PM   #11
AndyM
Lieutenant

AndyM's Avatar

Drives:
Join Date: Sep 2007

Posts: 530
iTrader: (2)

Here is a comparison between the 3 available kidney grills.


128 Kidney Grills (Chrome with black vertical slats):



135 Kidney Grills (Chrome with chrome vertical slats):



Shadowline/Tii Kidney Grills (Black with black vertical slats):

AndyM is offline
0
Reply With Quote
      04-29-2008, 02:50 PM   #12
Oregon
NRA Life Member, BMW CCA 25-year member

Oregon's Avatar

Drives: 08' 135i, HPE & SSK & 04' M3
Join Date: Aug 2007
Location: Oregon

Posts: 2,590
iTrader: (0)

Hey Andy, thanks for the presentation. 128 kidneys definitely for me.:wink:
__________________
Resigned 1ADDICTS Moderator


“To disarm the people is the best and most effective way to enslave them.” – George Mason
Oregon is offline   United_States
0
Reply With Quote
      04-29-2008, 02:53 PM   #13
AndyM
Lieutenant

AndyM's Avatar

Drives:
Join Date: Sep 2007

Posts: 530
iTrader: (2)

Quote:
Originally Posted by Surname View Post
Hey Andy, thanks for the presentation. 128 kidneys definitely for me.:wink:
Same here. :w00t:

I lasted 1 day with the shadowline and they were too black for me.

I will look and see if I have a pic from the same angle with the 135 grills.
AndyM is offline
0
Reply With Quote
      04-29-2008, 03:01 PM   #14
hitthemark41
Second Lieutenant

Drives:
Join Date: Feb 2008

Posts: 282
iTrader: (0)

Send a message via Yahoo to hitthemark41
Quote:
Originally Posted by AndyM View Post
Same here. :w00t:

I lasted 1 day with the shadowline and they were too black for me.

I will look and see if I have a pic from the same angle with the 135 grills.
what color do you have Andy? I have a BSM on order and am afraid the Shadowline will be TOO dark for that shade of black. Do you guys order the 128s from the dealer or somewhere else? Thanks!

duh...guessing that is YOUR montego in the pics? if so...sorry for the dumb question haha
__________________

2008 (Year 1 of the One ) 135i
Black Sapphire Metallic/Savanna Beige/
Gray Poplar/6MT/Sports & Premium pkgs/CA/Heated Seats/HD/PDC
Mods:35% tint / clear bra / Perf. pedals
hitthemark41 is offline
0
Reply With Quote
      04-29-2008, 03:15 PM   #15
AndyM
Lieutenant

AndyM's Avatar

Drives:
Join Date: Sep 2007

Posts: 530
iTrader: (2)

Quote:
Originally Posted by hitthemark41 View Post
what color do you have Andy? I have a BSM on order and am afraid the Shadowline will be TOO dark for that shade of black. Do you guys order the 128s from the dealer or somewhere else? Thanks!

duh...guessing that is YOUR montego in the pics? if so...sorry for the dumb question haha
Yeah, my car is Montego, no worries :wink:.

I liked the shadowline grills when they were installed until I saw the car from across a parking lot. It looked like someone forgot to put them in. I thought the 135 grills were too much chrome for a car with no chrome on it so the 128 grills were the way to go.

Tischer is probably your best bet for the 128 grills. The 128 and 135 grills are much cheaper than the shadowline ones. You pay for the white box with “BMW Performance” printed on it.
AndyM is offline
0
Reply With Quote
      04-29-2008, 03:17 PM   #16
Vidge
Private First Class

Drives:
Join Date: Mar 2008

Posts: 145
iTrader: (0)

Any one fancy selling their crome grills? as i prefer them with sedona, on my 123d i have the 128 grills.
__________________
123d M sport, Sedona Red, Boston Black Leather, 261s, Xenons, Bluetooth, USB, Brushed Aluminium, Darkened Glass, Cruise Control.
Vidge is offline
0
Reply With Quote
      04-29-2008, 03:22 PM   #17
TP 135i
Major

TP 135i's Avatar

Drives: 2008 135i SGM MT
Join Date: Nov 2007
Location: Finksburg, Maryland

Posts: 1,341
iTrader: (0)

Garage List
Just playin around...I switched mine yestersday to the Shadowline perimeter with the OEM chrome tipped interior slats.
It presents a nice combination....not a completely "blacked-out" look and eliminates the big chrome frame.
__________________

2008 135i SGM
TP 135i is offline   United_States
0
Reply With Quote
      04-29-2008, 06:18 PM   #18
hitthemark41
Second Lieutenant

Drives:
Join Date: Feb 2008

Posts: 282
iTrader: (0)

Send a message via Yahoo to hitthemark41
yeah I might be willing to sell my chrome grills if and when I switch to another set...but I dont expect to take delivery of my 135i until July, so not sure if that is soon enough. Hope that helps, and thanks again Andy for the tip

p.s. Tischer?
__________________

2008 (Year 1 of the One ) 135i
Black Sapphire Metallic/Savanna Beige/
Gray Poplar/6MT/Sports & Premium pkgs/CA/Heated Seats/HD/PDC
Mods:35% tint / clear bra / Perf. pedals
hitthemark41 is offline
0
Reply With Quote
      04-30-2008, 09:33 PM   #19
OzF16
BMF

Drives:
Join Date: Mar 2008

Posts: 84
iTrader: (0)

Quote:
Originally Posted by TP 135i View Post
Just playin around...I switched mine yestersday to the Shadowline perimeter with the OEM chrome tipped interior slats.
It presents a nice combination....not a completely "blacked-out" look and eliminates the big chrome frame.
Do you have a picture? This is the one combo I haven't seen.
__________________
135i
SGM, Coral Red Leather, Gray Poplar Trim, 6MT, Sport pkg, Premium pkg, Cold Wx pkg, Comfort Access, Premium Hi-Fi, Satellite Radio
Delivered May 12th!
OzF16 is offline
0
Reply With Quote
      05-01-2008, 05:54 AM   #20
TP 135i
Major

TP 135i's Avatar

Drives: 2008 135i SGM MT
Join Date: Nov 2007
Location: Finksburg, Maryland

Posts: 1,341
iTrader: (0)

Garage List
Quote:
Originally Posted by OzF16 View Post
Do you have a picture? This is the one combo I haven't seen.

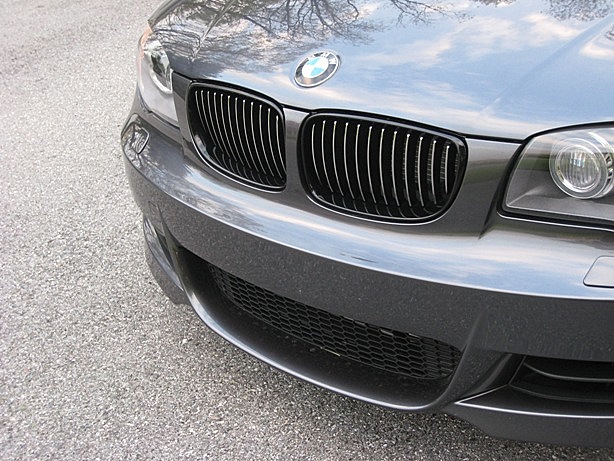

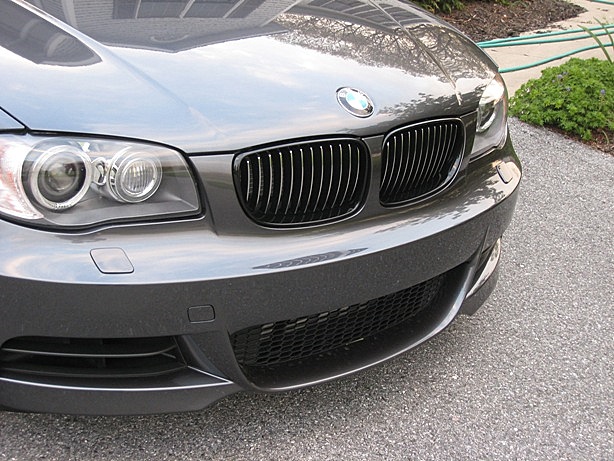

Your wish is my command...........Shadowline frames with OEM interior grille bars.
