      02-08-2010, 04:21 PM   #1
S54dan
I no longer work for United BMW!
S54dan's Avatar
107
Rep
3,327
Posts


Drives: E46 M3, E46 330i ZHP, E36 325i
Join Date: Jan 2008
Location: Atlanta, GA

iTrader: (36)

Garage List
1994 BMW 325i  [4.25]
2005 M3  [5.00]
2005 325i  [4.00]
2003 330i ZHP  [4.50]

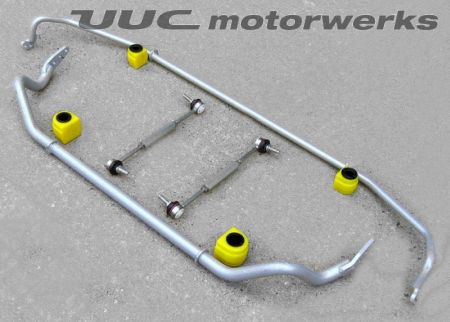

unitedBMWonline.com -> UUC Swaybarbarian Swaybars





Front swaybar w/ 27mm bar including bushings and links $285.00

Rear swaybar w/ 19mm bar including bushings and link $210.00

Buy the front/rear together and save $20.00

Free shipping!

Quote:
Technical details


As an example of our attention to detail, the E87 BMW 1-series Sway Barbarians is a very unique set of bars. Features include:
  • Adjustable 27mm Front Bar
  • Adjustable 19mm Rear Bar
  • Revised contouring for maximum clearance even with extremely lowered cars.
  • Precision-cut adjustable ends.
  • Positive-stop rear bushing guides assure bar stays in place.
  • Adjustable front end links with fully isolated bearing for silent operation - no clunks or rattles.
  • Urethane bushings, hardware kit, and lubrication included.
Quote:
Superior Materials

We put our bars through this extensive process to insure that the final product will be the strongest, most durable bar on the market, and that it will be the most resistant to form alteration.
Adjustability


The UUC BMW SwayBarbarian uses a multi-hole system on the front and rear bars which allows for fine tuning of the bar for whatever desired effect, without sacrificing body roll.
  • Front Bar: 3 hole adjustment
  • Rear Bar: 2 hole adjustment
Adjustable endlinks

Adjustable endlinks for perfect fit and pre-load setup with any amount of suspension lowering. Endlinks have spherical bearing ends identical to the BMW original equipment (OE) style for long noise-free life. No squeaking, clunking, or clicking as with "race" links.
Positive-placement rear bushing stops

To keep the tight-tolerance rear bar from shifting side-to-side, they are fitted with postiive-placement stops, rings around the bar that hold the bar in place against the bushings.
Powdercoated Finish

After the bars are CNC mandrel bent and the ends are forged and punched, a silver powdercoat is applied for a smooth, long lasting finish in a similar process to how BMW factory bars are coated. This smooth finish allows the bars, when properly installed with polyurethane bushings and grease, for long term performance with minimal maintenance.
Polyurethane Bushings

The UUC BMW SwayBarbarians include replacement delrin-lined polyurethane bushings which are built to "aircraft spec" (literally - our urethane fabrication facility uses the same material and production guidelines as they do for Boeing). This results in a durable bushing that will not disintegrate and has longer re-lubrication intervals for long lasting, quiet results. Be sure to use generous amounts of grease to ensure maximum performance from your SwayBarbarians!
__________________
Former employee of United BMW. I am now employed by Mercedes-Benz.

Last edited by S54dan; 06-22-2010 at 12:12 PM.
Appreciate 0
      02-08-2010, 05:13 PM   #2
nordique14
Major
No_Country
21
Rep
1,455
Posts


Drives: SGM 135i 'vert
Join Date: Feb 2008
Location: Sharks Territory

iTrader: (3)

The front sways are now only 2 hole. The original versions were 3 hole. This was changed while back but I guess their product description on the website was never updated.
Appreciate 0
      02-08-2010, 07:02 PM   #3
larryn
Major General
United_States
143
Rep
8,443
Posts


Drives: '97 332ti, '10 E92 M3
Join Date: May 2005
Location: Seattle

iTrader: (2)

Yep. I was the reason for the change.
Appreciate 0
      02-08-2010, 08:26 PM   #4
Brahmzy
Lieutenant
11
Rep
580
Posts


Drives: Stuff
Join Date: Nov 2009
Location: Colorado

iTrader: (0)

These bars hollow?
__________________

2010 135i | 6MT | Le Mans | Prem Pkg | M Pkg | CA | Hi-Fi | Boston | Other Cool Stuff
Appreciate 0
      02-08-2010, 08:29 PM   #5
nordique14
Major
No_Country
21
Rep
1,455
Posts


Drives: SGM 135i 'vert
Join Date: Feb 2008
Location: Sharks Territory

iTrader: (3)

Quote:
Originally Posted by Brahmzy View Post
These bars hollow?
nope.
Appreciate 0
      02-10-2010, 03:44 PM   #6
S54dan
I no longer work for United BMW!
S54dan's Avatar
107
Rep
3,327
Posts


Drives: E46 M3, E46 330i ZHP, E36 325i
Join Date: Jan 2008
Location: Atlanta, GA

iTrader: (36)

Garage List
1994 BMW 325i  [4.25]
2005 M3  [5.00]
2005 325i  [4.00]
2003 330i ZHP  [4.50]
Wow I don't even need to answer questions! This is why I 1Addicts!

I've responded to those who have PM'd me.
__________________
Former employee of United BMW. I am now employed by Mercedes-Benz.
Appreciate 0
      02-22-2010, 10:35 AM   #7
S54dan
I no longer work for United BMW!
S54dan's Avatar
107
Rep
3,327
Posts


Drives: E46 M3, E46 330i ZHP, E36 325i
Join Date: Jan 2008
Location: Atlanta, GA

iTrader: (36)

Garage List
1994 BMW 325i  [4.25]
2005 M3  [5.00]
2005 325i  [4.00]
2003 330i ZHP  [4.50]
bump for UUC
__________________
Former employee of United BMW. I am now employed by Mercedes-Benz.
Appreciate 0
      06-22-2010, 12:11 PM   #8
S54dan
I no longer work for United BMW!
S54dan's Avatar
107
Rep
3,327
Posts


Drives: E46 M3, E46 330i ZHP, E36 325i
Join Date: Jan 2008
Location: Atlanta, GA

iTrader: (36)

Garage List
1994 BMW 325i  [4.25]
2005 M3  [5.00]
2005 325i  [4.00]
2003 330i ZHP  [4.50]
__________________
Former employee of United BMW. I am now employed by Mercedes-Benz.
Appreciate 0
