1M KW CLUBSPORTS-Review

This weekend I spent the day and did some car related stuff. I weighed my car, installed a set of KW Clubsports & removed the CDV.

When I decided that I was going to trade in my E90 M3 for a 1M i knew the KW Clubsport was the coilover of choice. I had them on my E90 M3 and was nothing short of impressed. It is very compliant on the street yet very capable on track. My car is dual duty which means I ask alot of my equipments ability to excel in both aspects. The build quality is top notch and reliability had proven to be fantastic. I have had experience with other coilovers on previous car in which blown shocks were a common issue.

After about a month of trying to confirm whether the non-edc E92/E90 M3 kit would work in the 1M I got a very pleasing call from SAM @ AUTOTALENT that it was the same kit. I had ordered my previous kit through Sam so naturally he was the guy to call. My only gripe with my previous kit was the method of bump adjustment, Sam mentioned to me that KW had revised this with a new click style knob. 24hrs later my updated kit was in the mail. I would like to thank Sam for staying in contact with me even though he knew I had no intention of buying a new kit if my old one fit. He really showed he actually cared and was not just trying to make a sale. He provided EXCELLENT customer service and great pricing on the new kit.

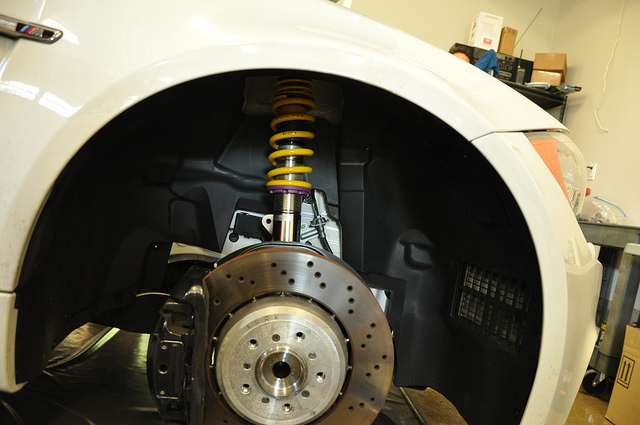

The clubsports are double adjustable, 500/800 spring rates, camber plates and have more aggressive valving then variant line. 12 bump adjustments with 18 rebound adjustments make it a very versatile kit. Install went relatively smooth with no hiccups. I lowered the car 1 inch all around and kept the 1 inch rake from front to rear measured using the fenders as a reference point. The kit really has transformed the car. I still need to do an alignment, but the car feels 100% more focused and like a go kart. The steering response is now instant and the car feels solidly planted to the ground. I have yet to take it to the track as I only had the car a week and am still in break in but this thing is going to be nuts.

I have attached some pics for your viewing pleasure. More pics to come once I can get a proper photoshoot with my buddy's VO 1m who also installed the Clubsports and is loving them.
Attached Images

__________________
THE GOBBLER- S.O.H
TUNEDM3 is offline
0
Reply With Quote
      07-31-2011, 07:38 AM   #2
TUNEDM3
Stay Ripping

Drives: 1M
Join Date: Sep 2008
Location: New York

Posts: 421
iTrader: (4)

1 more pic
Attached Images

__________________
THE GOBBLER- S.O.H
TUNEDM3 is offline
0
Reply With Quote
      07-31-2011, 07:47 AM   #3
Jezzer
Banned

Drives: Series 1 m coupe
Join Date: Jul 2011
Location: UK

Posts: 938
iTrader: (0)

That does sit nice now
Jezzer is offline   United Kingdom
0
Reply With Quote
      07-31-2011, 09:53 AM   #4
hopofthese
Private First Class

Drives: E46 M3 & 11 1M
Join Date: Jul 2008
Location: NYC

Posts: 135
iTrader: (2)

Send a message via AIM to hopofthese
Good job T-Neck. My pics of the VO on clubsports will follow soon.
hopofthese is offline   United_States
0
Reply With Quote
      07-31-2011, 12:13 PM   #5
Mahlzeit
Lieutenant

Drives: 1M
Join Date: Jul 2007
Location: Location Location

Posts: 532
iTrader: (0)

Nice work.
Nice ride.
Nice garage!
Mahlzeit is offline   United_States
0
Reply With Quote
      07-31-2011, 01:08 PM   #6
Mark
Administrator

Mark's Avatar

Drives: 1M
Join Date: Mar 2005
Location: USA

Posts: 3,924
iTrader: (1)

Garage List
Congrats! When you say its compliant on the streets, how would you compare it to stock?
__________________
The new beast. BMW M5.
Mark is offline   United_States
0
Reply With Quote
      07-31-2011, 08:32 PM   #7
TUNEDM3
Stay Ripping

Drives: 1M
Join Date: Sep 2008
Location: New York

Posts: 421
iTrader: (4)

Quote:
Originally Posted by Mark View Post
Congrats! When you say its compliant on the streets, how would you compare it to stock?
Its definately alot more aggressive then stock. For the level of performance it provides its very forgiving on the streets. Every aspect of the road is transmitted through the steering wheel and the seat of your pants. The stock suspension is alot softer and more forgiving on large bumps in the road. On a very smooth road both are equally as comfortable.
__________________
THE GOBBLER- S.O.H
TUNEDM3 is offline
0
Reply With Quote
      07-31-2011, 09:08 PM   #8
Rich@GTBPerformance
Bimmerpost Sponsor and BMW Performance Guru

Rich@GTBPerformance's Avatar

Drives: 2011 M3
Join Date: Dec 2010
Location: NJ, Right outside of NYC

Posts: 4,178
iTrader: (19)

I love the 1M next to the E30 325i

Great combination!!!
__________________

Your Home For Premium BMW Aftermarket Parts
www.gtbperformance.com | sales@gtbperformance.com | Facebook | 973 429 2839
Rich@GTBPerformance is offline
0
Reply With Quote
      07-31-2011, 09:24 PM   #9
Dan Parker
Major

Drives: 2012 Golf R
Join Date: Nov 2010
Location: Georgia

Posts: 1,421
iTrader: (0)

Pointing out the obvious here.....watch that front end! Mine is sitting at the same height (Motons) and that bumper is freakin low!

Nice ride...you have awesome taste in cars!
__________________
Dan Parker
Dan Parker is offline   United_States
0
Reply With Quote
      07-31-2011, 09:35 PM   #10
m3kerry
SCCA STU

m3kerry's Avatar

Drives: 335i Dinan stage 2 / 1 M
Join Date: Mar 2009
Location: Little Rock

Posts: 604
iTrader: (0)

3300lbs? What options are on the car?
__________________
Thanks to: Hixson BMW, Race-Keeper, Koni, BimmerHaus, & Hoosier
2012 SUMMER NATIONALS SCCA PRO-SOLO BONUS CHALLENGE WINNER
2012 SUMMER NATIONALS SCCA PRO-SOLO A STOCK CHAMPION
2012 SCCA DIXIE A STOCK CHAMPION
www.facebook.com/thatsrightracing
m3kerry is offline   United_States
0
Reply With Quote
      07-31-2011, 09:44 PM   #11
Dan Parker
Major

Drives: 2012 Golf R
Join Date: Nov 2010
Location: Georgia

Posts: 1,421
iTrader: (0)

A full tank of petro.

6lbs x 14 gallons = 84 lbs
(approximation to the sticklers for details)
__________________
Dan Parker
Dan Parker is offline   United_States
0
Reply With Quote
      07-31-2011, 10:18 PM   #12
Mattgfx
Lieutenant

Mattgfx's Avatar

Drives: 11 328i xDrive
Join Date: Oct 2009
Location: NY

Posts: 488
iTrader: (0)

wow that looks amazing. Hopefully you can get some more pictures up.
__________________
08 135i | Alpine White |SOLD
11 328i xDrive | Jet Black |
Mattgfx is offline   United_States
0
Reply With Quote
      08-01-2011, 06:55 AM   #13
TUNEDM3
Stay Ripping

Drives: 1M
Join Date: Sep 2008
Location: New York

Posts: 421
iTrader: (4)

I wish I could say that was my garage and my cars, but my friend was kind enough to let us use his lift and the cars all have different owners.

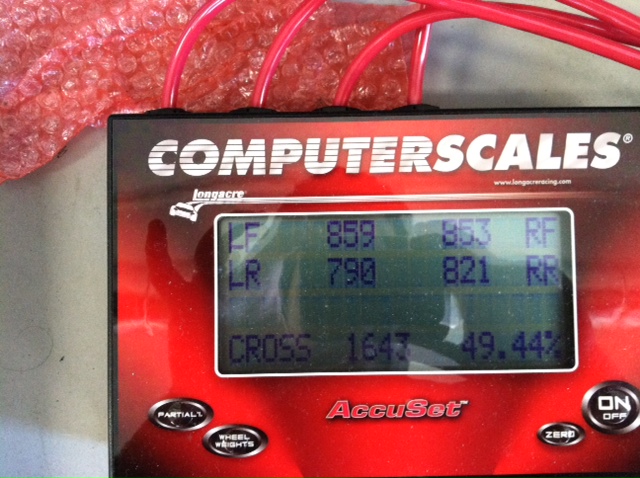

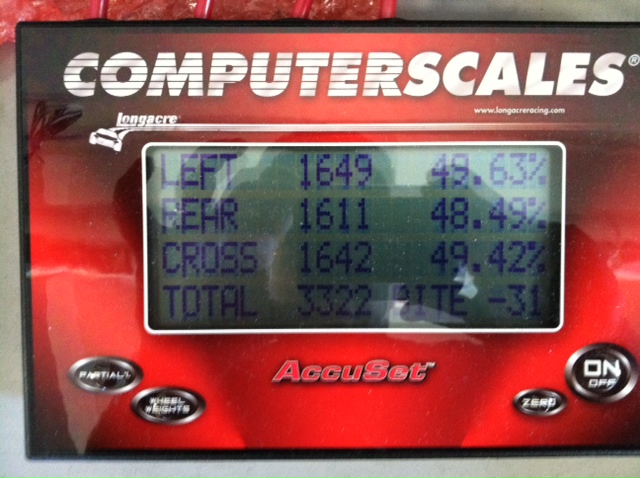

My car is optioned with just bluetooth. It came in at 3322 on a full tank, while we also weighed a fully loaded 1M with everything except heated seats which came in at 3360 on a full tank.

I plan on getting back on the scales once the springs settle a bit and doing a full cornerbalance.
__________________
THE GOBBLER- S.O.H
TUNEDM3 is offline
0
Reply With Quote
      08-01-2011, 11:43 AM   #14
Mahlzeit
Lieutenant

Drives: 1M
Join Date: Jul 2007
Location: Location Location

Posts: 532
iTrader: (0)

So power seats + HK + idrive add something in the neighborhood of ~38lbs over a stripped 1M. You're sure the loaded car has full tank?

For the weight conscious - conservatively you could take another 4 lbs off each corner w/ a set of lightweight 19's (21lbs vs 25lbs), to get down to 3306 overall. Darn light for a modern performance 2+2.
Mahlzeit is offline   United_States
0
Reply With Quote
      08-01-2011, 12:15 PM   #15
flipm3
E46 + E90

Drives: E46 M3 + E90 M3
Join Date: Jul 2008
Location: Illinois

Posts: 2,770
iTrader: (1)

Garage List
2009 BMW M3  [0.00]
2002 BMW M3  [0.00]
If only it was a little easier to allocate a 1M...maybe we would trade in our E90 M3 too...haha

Car looks great! I can't wait to hear your track impressions.
__________________
E90 M3 DCT|Melbourne Red . Speed Cloth | My Build Thread
E46 M3 6MT|Jet Black . Black Nappa Leather | My Build Thread
flipm3 is offline   Philippines
0
Reply With Quote
      08-01-2011, 01:37 PM   #16
Stee
New Member

Drives: Squirt & Big Black Bertha
Join Date: Nov 2008
Location: NYC

Posts: 15
iTrader: (0)

Quote:
Originally Posted by Mahlzeit View Post
So power seats + HK + idrive add something in the neighborhood of ~38lbs over a stripped 1M. You're sure the loaded car has full tank?

For the weight conscious - conservatively you could take another 4 lbs off each corner w/ a set of lightweight 19's (21lbs vs 25lbs), to get down to 3306 overall. Darn light for a modern performance 2+2.
Yes, both cars had a full tank, on the same scales.
Stee is offline
0
Reply With Quote
      08-01-2011, 02:03 PM   #17
m3kerry
SCCA STU

m3kerry's Avatar

Drives: 335i Dinan stage 2 / 1 M
Join Date: Mar 2009
Location: Little Rock

Posts: 604
iTrader: (0)

Quote:
Originally Posted by Stee View Post
Yes, both cars had a full tank, on the same scales.
I was sure hoping for a lot less than that. I may have to order some options when my slot comes up. That is just crazy that. I would have thought manual seats would have been a good 100lbs alone to get the car in the low 3200 range. That is just too heavy.... (for autox)
__________________
Thanks to: Hixson BMW, Race-Keeper, Koni, BimmerHaus, & Hoosier
2012 SUMMER NATIONALS SCCA PRO-SOLO BONUS CHALLENGE WINNER
2012 SUMMER NATIONALS SCCA PRO-SOLO A STOCK CHAMPION
2012 SCCA DIXIE A STOCK CHAMPION
www.facebook.com/thatsrightracing
m3kerry is offline   United_States
0
Reply With Quote
      08-01-2011, 02:49 PM   #18
Mahlzeit
Lieutenant

Drives: 1M
Join Date: Jul 2007
Location: Location Location

Posts: 532
iTrader: (0)

If the 1M's rear seat backs and seat cushions are as easy to remove and weigh as much as those in my e36 coupe.... then stripper + light wheels + temporary rear seat removal should get you well below 3300.

After that you're looking at costly body panels or compromised cold cranking capacity (lightweight battery).

I swear the rear seat backs from my e36 must have weighed 30lbs each.
Mahlzeit is offline   United_States
0
Reply With Quote
      08-01-2011, 04:28 PM   #19
BerkTechnology
Lieutenant Colonel

BerkTechnology's Avatar

Drives: Fast
Join Date: May 2008
Location: Irvine, CA

Posts: 1,565
iTrader: (1)

Congrats on the KW Clubsports! They are an excellent dual purpose street/track setup that doesn't break the bank.

The rear seats are HEAVY. Take them out if you can. This chassis is pretty easy to get down to below 3000lbs with just unbolting stuff.

On our 135i we are right around 3100# w/o driver. This is race weight with all glass, door panels, fuel and a full cage.
BerkTechnology is offline
0
Reply With Quote
      08-01-2011, 09:22 PM   #20
SamBoler
Private First Class

Drives: 2DR
Join Date: Oct 2006
Location: LA,CA

Posts: 178
iTrader: (0)

Great info!!

Clubsports are the same as M3 but NOT the Variant 3.

KW has a separate Variant 3 application for the 1M - 35220095
__________________
-Active Tune & Downpipes
-KW V3 Coilovers
SamBoler is offline
0
Reply With Quote
      08-02-2011, 08:30 AM   #21
p66
Second Lieutenant

Drives: 1M
Join Date: May 2011
Location: Dallas, Texas

Posts: 206
iTrader: (0)

What is the max negative front camber you can get out of this setup?
p66 is offline
0
Reply With Quote
      08-02-2011, 08:54 AM   #22
Stee
New Member

Drives: Squirt & Big Black Bertha
Join Date: Nov 2008
Location: NYC

Posts: 15
iTrader: (0)

Hopofthese's corner balance sheet:



Notes:
Fuel was added after the baseline from 1/4 tank to 3/4 tank (thats the added 40 lbs)

This car has every option except heated seats and is completely stock with the exception of the KW Clubsports.

Corner weights were taken with 215 lbs driver, but ride height measurements were taken without driver.

Ride height measurements are taken from the bottom of the fender to the bottom of the wheel. If you would like to convert this to measurements to the center of the hub (because you have a different wheel), subtract 10 1/4 (which is half the 20 1/2 actual diameter of this particular wheel from lip to lip). For example, the Left Rear measured 23 inches, which converts to 12 3/4 inches to the center of the hub.

Last edited by Stee; 08-02-2011 at 09:06 AM.
