      01-17-2009, 04:17 PM   #1
ulrichd
Colonel

ulrichd's Avatar

Drives: 128i M-Sport
Join Date: Jun 2007
Location: Houston, TX

Posts: 2,089
iTrader: (5)

128 to 135 front bumper (w/ euro fogs).

The title says it all, here is a quick write up. All was ordered from Dan at United who ways very up front about the fact that, unlike the rear bumper kit, this is not an approved BMW kit, rather an assortment of pieces. I crossed my fingers and went to work.

Starting at the top, lift up the rubber seals trip across the top of the grill and remove the 4 hex screws. There are 3 fasteners inside the wheel wells, just crank your wheel over and you can get in there no problem. Undo all fasteners across the botton edge of the bumper under the car. At this point the bumper should come off but hangs up at the leading edge near the headlight assembly. Slide something underneath to push down the small locking tabs and it will come out. The closeup of the bumper corner shows all mounting points and locking tabs. Grills easily transfer to the new bumper.

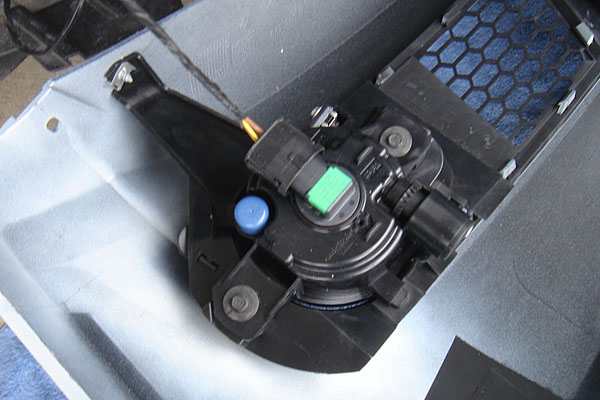

The fog light assemblies bolt to the backside of the bumper and the lights snap in place with the addition of the mounting screws. The bulbs simply twist out of the old 128 lights and twist into the new fogs - simple! A quick light test before the whole bumper snaps back in. I show a pic with the assemblies and lights in place.

Reassembly is easy but I ran into a problem at the bottom of the car. The center 3 mounting holes under the bumper no longer line up with anything on the car. The new bumper must be a slightly different shape. Also I was not able to figure out how to mount the 2 pressure seals shown in the pic. Perhaps the 2 things are related. I would appreciate any help if you know the answer.

Overall I am very pleased. The front bumper design of the 128 leaves something to be desired and this fixes it nicely.
Attached Images

ulrichd is offline   United_States
0
Reply With Quote
      01-17-2009, 04:30 PM   #2
RWD4Life
Second Lieutenant

RWD4Life's Avatar

Drives: R56 MINI
Join Date: Nov 2008
Location: Massachusetts

Posts: 220
iTrader: (0)

just out of curiosity, how much did it cost you?
also any advice on how to get the 1.35 wheels you have?
Thanks
RWD4Life is offline   United_States
0
Reply With Quote
      01-17-2009, 04:56 PM   #3
ulrichd
Colonel

ulrichd's Avatar

Drives: 128i M-Sport
Join Date: Jun 2007
Location: Houston, TX

Posts: 2,089
iTrader: (5)

Not cheap. Bumper is $580 including foglights, painting is $300, plus shipping around $150-200. The wheels I got from the for sale forum on this site. Should be able to get a set for around $750.

http://www.trademotion.com/partlocat...subcat1=133774
ulrichd is offline   United_States
0
Reply With Quote
      01-17-2009, 05:40 PM   #4
Add1ct
Lieutenant Colonel

Add1ct's Avatar

Drives: 135i, 335i
Join Date: Sep 2008
Location: Palos Verdes Estates (SoCal)

Posts: 1,860
iTrader: (3)

I was wondering about the euro foglamps- is this something us 135i guys can retrofit and what would it take- I'd get the oem front/rear fog lcm from Andy at leatherz for $60 but then I'd need the fog kit and the wiring- Dan maybe you can chime in here?
__________________
E82 N54 6MT 6FL 668 KASW turned in
E92 Crimson/Cream N54 6MT, ZSP, ZPP, ZCW, Nav, Sat radio, HD Radio, Logic7, PDC, Active Steering, Active Cruise, 6FL, CA
Add1ct is offline
0
Reply With Quote
      01-17-2009, 05:55 PM   #5
MI128
Private First Class

MI128's Avatar

Drives: 2011 X5 35I M-Sport
Join Date: Dec 2008
Location: MI

Posts: 134
iTrader: (0)

Garage List
2008 BMW 128  [0.00]
Wow, what a difference. Looks great. Do you have any more pics of your whole car with the rear and front done? Would like to do the same to my 128. Already have the 135 wheels.
__________________
2011 X5 35I M-Sport
White/Cinnamon/Dark Bamboo/M-Sport/Convenience Package/Nav/Sirius/Heated Seats
MI128 is offline
0
Reply With Quote
      01-17-2009, 05:55 PM   #6
ulrichd
Colonel

ulrichd's Avatar

Drives: 128i M-Sport
Join Date: Jun 2007
Location: Houston, TX

Posts: 2,089
iTrader: (5)

Don't think so. The fogs would block the oil cooler that you 135 guys have.
ulrichd is offline   United_States
0
Reply With Quote
      01-17-2009, 05:57 PM   #7
ulrichd
Colonel

ulrichd's Avatar

Drives: 128i M-Sport
Join Date: Jun 2007
Location: Houston, TX

Posts: 2,089
iTrader: (5)

Quote:
Originally Posted by MI128 View Post
Wow, what a difference. Looks great. Do you have any more pics of your whole car with the rear and front done? Would like to do the same to my 128. Already have the 135 wheels.
Weather permitting I will wash it tomorrow and take some pics. Of course, now it just looks like a 135.
ulrichd is offline   United_States
0
Reply With Quote
      01-17-2009, 06:04 PM   #8
Add1ct
Lieutenant Colonel

Add1ct's Avatar

Drives: 135i, 335i
Join Date: Sep 2008
Location: Palos Verdes Estates (SoCal)

Posts: 1,860
iTrader: (3)

Quote:
Originally Posted by ulrichd View Post
Weather permitting I will wash it tomorrow and take some pics. Of course, now it just looks like a 135.
NO, it has the euro mesh and fogs and no pop-outs for headlight washers, the headlight washers are definitely cool, but the caps look tacky, looks awesome, great job!
__________________
E82 N54 6MT 6FL 668 KASW turned in
E92 Crimson/Cream N54 6MT, ZSP, ZPP, ZCW, Nav, Sat radio, HD Radio, Logic7, PDC, Active Steering, Active Cruise, 6FL, CA
Add1ct is offline
0
Reply With Quote
      01-17-2009, 06:15 PM   #9
S54dan
I no longer work for United BMW!

S54dan's Avatar

Drives: E46 M3, E46 330i ZHP, E36 325i
Join Date: Jan 2008
Location: Atlanta, GA

Posts: 3,327
iTrader: (36)

Garage List
1994 BMW 325i  [4.25]
2005 M3  [5.00]
2005 325i  [4.00]
2003 330i ZHP  [4.50]
Looks great Ulrich! I'm glad that you're pleased with it! The two trim pieces are the lips for under each side of the fender liner. They are specifically for the M bumper (135i front bumper).

http://www.realoem.com/bmw/showparts...35&hg=51&fg=15

#25 and #26
__________________
Former employee of United BMW. I am now employed by Mercedes-Benz.
S54dan is offline
0
Reply With Quote
      01-17-2009, 06:16 PM   #10
S54dan
I no longer work for United BMW!

S54dan's Avatar

Drives: E46 M3, E46 330i ZHP, E36 325i
Join Date: Jan 2008
Location: Atlanta, GA

Posts: 3,327
iTrader: (36)

Garage List
1994 BMW 325i  [4.25]
2005 M3  [5.00]
2005 325i  [4.00]
2003 330i ZHP  [4.50]
I highly recommend against adding fog lights to 135i's although I don't see why it can't be done. I would be worried about the oil cooler. You would also need to get a new LCM (unless you've gotten the one from Andy) to enable the fogs. I can't even guarantee that it would work
__________________
Former employee of United BMW. I am now employed by Mercedes-Benz.
S54dan is offline
0
Reply With Quote
      01-17-2009, 06:52 PM   #11
ulrichd
Colonel

ulrichd's Avatar

Drives: 128i M-Sport
Join Date: Jun 2007
Location: Houston, TX

Posts: 2,089
iTrader: (5)

Quote:
Originally Posted by Dan@UnitedBMW View Post
Looks great Ulrich! I'm glad that you're pleased with it! The two trim pieces are the lips for under each side of the fender liner. They are specifically for the M bumper (135i front bumper).

http://www.realoem.com/bmw/showparts...35&hg=51&fg=15

#25 and #26
Thanks Dan, I'll take a look.
ulrichd is offline   United_States
0
Reply With Quote
      01-17-2009, 07:15 PM   #12
1ntense_Rocket
1ntense_Rocket

1ntense_Rocket's Avatar

Drives: BMW 128i sport
Join Date: Aug 2008
Location: Toronto, Canada

Posts: 302
iTrader: (1)

Thank you so much for this DIY, i just bought an AW 135i bumper off of Cooldaddygrove because he swtiched his front bumper to a performance bumper.. it will arrive in a few days, i was just wondering if you used the same hardware that came off of your 128 bumper?
1ntense_Rocket is offline
0
Reply With Quote
      01-17-2009, 09:13 PM   #13
larryn
Major General

Drives: '97 332ti, '10 E92 M3
Join Date: May 2005
Location: Seattle

Posts: 8,439
iTrader: (2)

Fantastic job, ulrichd, and I added yet another of your DIYs to the index. Thanks!
larryn is offline   United_States
0
Reply With Quote
      01-17-2009, 09:25 PM   #14
Add1ct
Lieutenant Colonel

Add1ct's Avatar

Drives: 135i, 335i
Join Date: Sep 2008
Location: Palos Verdes Estates (SoCal)

Posts: 1,860
iTrader: (3)

Quote:
Originally Posted by Dan@UnitedBMW View Post
I highly recommend against adding fog lights to 135i's although I don't see why it can't be done. I would be worried about the oil cooler. You would also need to get a new LCM (unless you've gotten the one from Andy) to enable the fogs. I can't even guarantee that it would work
ok then I guess I wont, is there anyway to get the mesh down there though instead of the two bars, also I'm going to send a pm to you about the rear fog only lcm and a couple other parts,
__________________
E82 N54 6MT 6FL 668 KASW turned in
E92 Crimson/Cream N54 6MT, ZSP, ZPP, ZCW, Nav, Sat radio, HD Radio, Logic7, PDC, Active Steering, Active Cruise, 6FL, CA
Add1ct is offline
0
Reply With Quote
      01-17-2009, 10:17 PM   #15
ulrichd
Colonel

ulrichd's Avatar

Drives: 128i M-Sport
Join Date: Jun 2007
Location: Houston, TX

Posts: 2,089
iTrader: (5)

Quote:
Originally Posted by 1ntense_Rocket View Post
Thank you so much for this DIY, i just bought an AW 135i bumper off of Cooldaddygrove because he swtiched his front bumper to a performance bumper.. it will arrive in a few days, i was just wondering if you used the same hardware that came off of your 128 bumper?
Everything transfers but you will need 4 addtl. fasteners. The total number needed to attach the fog light carriers and fog lights is (10). There are only (6) you can transfer from the 128 lights. PM me if you get into trouble.
ulrichd is offline   United_States
0
Reply With Quote
      01-17-2009, 10:19 PM   #16
ulrichd
Colonel

ulrichd's Avatar

Drives: 128i M-Sport
Join Date: Jun 2007
Location: Houston, TX

Posts: 2,089
iTrader: (5)

Quote:
Originally Posted by 1ntense_Rocket View Post
Thank you so much for this DIY, i just bought an AW 135i bumper off of Cooldaddygrove because he swtiched his front bumper to a performance bumper.. it will arrive in a few days, i was just wondering if you used the same hardware that came off of your 128 bumper?
BTW,
Dan at United can get you the euro foglights and hardware seperately if you want them.
ulrichd is offline   United_States
0
Reply With Quote
      01-18-2009, 01:32 PM   #17
Alow
First Lieutenant

Alow's Avatar

Drives: 09 128i
Join Date: Jul 2008
Location: Kansas City, MO

Posts: 387
iTrader: (1)

Thank you for the DIY ulrichd.

Does anyone know if something like this can be done with the performance bumper? Dan?
Alow is offline   United_States
0
Reply With Quote
      01-18-2009, 07:05 PM   #18
ulrichd
Colonel

ulrichd's Avatar

Drives: 128i M-Sport
Join Date: Jun 2007
Location: Houston, TX

Posts: 2,089
iTrader: (5)

Quote:
Originally Posted by Alow View Post
Thank you for the DIY ulrichd.

Does anyone know if something like this can be done with the performance bumper? Dan?
Absolutely. If anything, it will be easier because you won't have to worry about mounting the fog lights. Not sure If you get a warning light on the dash if you just disconnect them. I went this route because I prefer the look of the 135 bumper and wanted to keep the foglights.
ulrichd is offline   United_States
0
Reply With Quote
      01-18-2009, 07:36 PM   #19
ulrichd
Colonel

ulrichd's Avatar

Drives: 128i M-Sport
Join Date: Jun 2007
Location: Houston, TX

Posts: 2,089
iTrader: (5)

Quote:
Originally Posted by MI128 View Post
Wow, what a difference. Looks great. Do you have any more pics of your whole car with the rear and front done? Would like to do the same to my 128. Already have the 135 wheels.
Here's a pic after washing today. Too bad you can't see the Coral Red interior.
If anyone is interested, the total budget for front and rear bumpers, side skirts (used) and wheels (used), including paint was $2,500. The money for my original sport package wheels and tires paid for the new 18" non-runflats Yoko S-drives and shipping of all pieces..

I originally paid just over $32K (sport, 6-speed, xenons, coral leather) for the car so I am at $34.5K. I think the car represents a great value at this price point. Only other car considered was a JCW Mini (I came from a 2003 Cooper S) but it would have been more than this.
Attached Images

ulrichd is offline   United_States
0
Reply With Quote
      01-19-2009, 01:30 AM   #20
S54dan
I no longer work for United BMW!

S54dan's Avatar

Drives: E46 M3, E46 330i ZHP, E36 325i
Join Date: Jan 2008
Location: Atlanta, GA

Posts: 3,327
iTrader: (36)

Garage List
1994 BMW 325i  [4.25]
2005 M3  [5.00]
2005 325i  [4.00]
2003 330i ZHP  [4.50]
Love that pic Ulrich, mind if I use it? :biggrin:

As for fog lights on the Performance Aero bumper... at this time there is no kit that is offered nor one that can be retrofitted. The M Sport fog lights used for Ulrich's bumper were designed specifically for the European model Aerodynamic bumpers (notice the air-duct cut outs are the same as the 135i) so it's not possible to use the M grids to place fog lights.
__________________
Former employee of United BMW. I am now employed by Mercedes-Benz.
S54dan is offline
0
Reply With Quote
      01-19-2009, 08:48 AM   #21
ulrichd
Colonel

ulrichd's Avatar

Drives: 128i M-Sport
Join Date: Jun 2007
Location: Houston, TX

Posts: 2,089
iTrader: (5)

Quote:
Originally Posted by Dan@UnitedBMW View Post
Love that pic Ulrich, mind if I use it? :biggrin:
Feel free to use it. :thumbup:
ulrichd is offline   United_States
0
Reply With Quote
      01-19-2009, 10:51 AM   #22
achtungE30
I can has my 135i!

achtungE30's Avatar

Drives: '08 135, '08 X3, '87 e30s52
Join Date: Apr 2006
Location: NJ

Posts: 3,060
iTrader: (2)

Garage List
2008 135is  [4.75]
2010 Cooper S  [5.00]
1991 318is  [5.00]
Send a message via AIM to achtungE30
Very nice, I really like the way the 135i bumper looks with fogs!
__________________
Best,
Frank
My 2008 135i Euro Delivery Thread: http://www.1addicts.com/forums/showthread.php?t=219422
May 2011 Self-Photoshoot Part 1: http://www.1addicts.com/forums/showthread.php?t=529573
JB4 G4 | AA DP | BMW PE | BMW SSK | KW V2 | Work
achtungE30 is offline   Philippines
