Arrow 135i Spark Plug replacement DIY...

Spark Plug replacemnt on my 135i N54...


Spark plug socket - Hazet #4766-2
(14mm 12pt 3/8 drive) 25 euros

3/8 drive extension 30cm long
Torque wrench (low strength) 23 NM(!)
Hex wrench 5 mm
Magnetic telescopic pickup
8mm drive (cowl cover)

6 spark plugs BMW 12 12 0 037 244
BOSCH ZGR6STE2


The spark plugs should be changed every 45K miles. IF your car is still under warranty BMW NA will change them for you. I live in Germany though, and here we must pay for ALL services. Nothing is free in Germany, except the autobahns(at least for now)!! lol

I decided to buy my spark plugs from BMW, mainly because I have read that some members have had misfire issues with equivalent BOSCH plugs. The spark plugs say BMW/BOSCH on them. BMW list price is 17 euros each, I paid 13 euros from my friends at my BMW Zentrum.

The spark plugs need to be torque to 23Nm. I bought a low spec 3/8’s torque wrench from Gedore: 5 – 50Nm specs. Install them dry without any anti seize. Also install them with a cold engine.

Here are my DIY photos…


Btw... I found this DIY over on the e90 post very helpfull...

335i - change spark plugs after 16000 miles

http://www.e90post.com/forums/showthread.php?t=142679

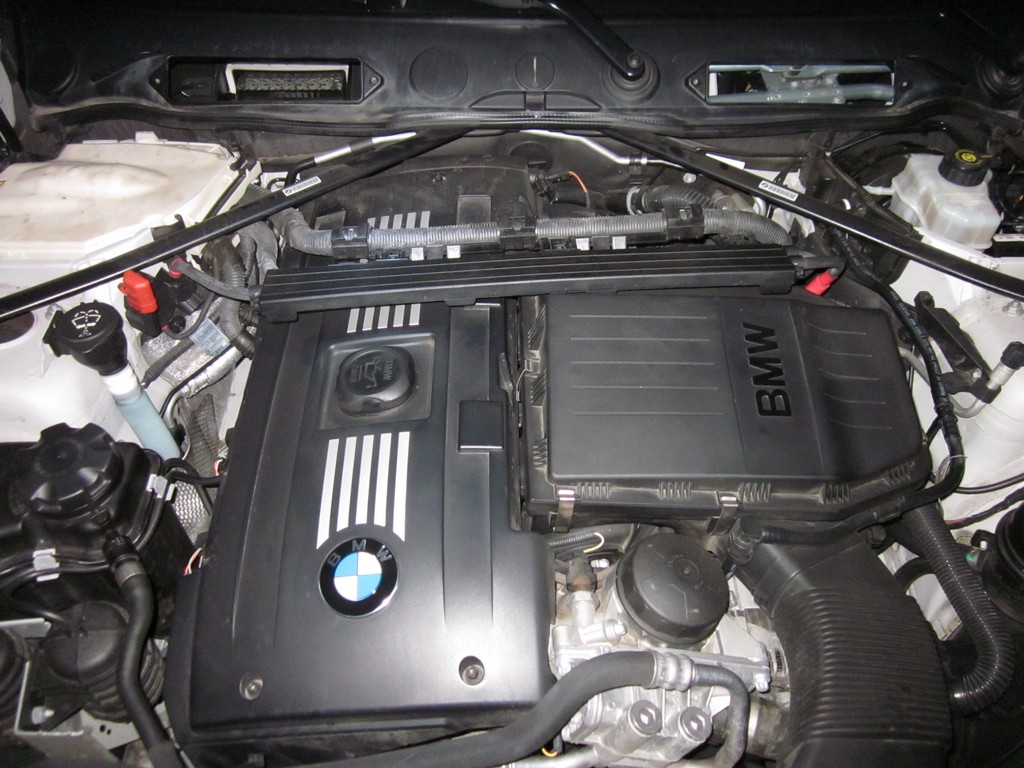

Open hood,
Remove: pollen micro filter (6 x 8mm bolts)
Remove 2 x 8mm bolts (one in each corner of the black metal tray that the pollen filter sits in.
Remove sensor(s) on each corner of tray.
Now pull out the tray - front part raises - rear unclips out of slot

Remove 4 x 5mm allen (chease head/impulse) bolts on engine valave cover.

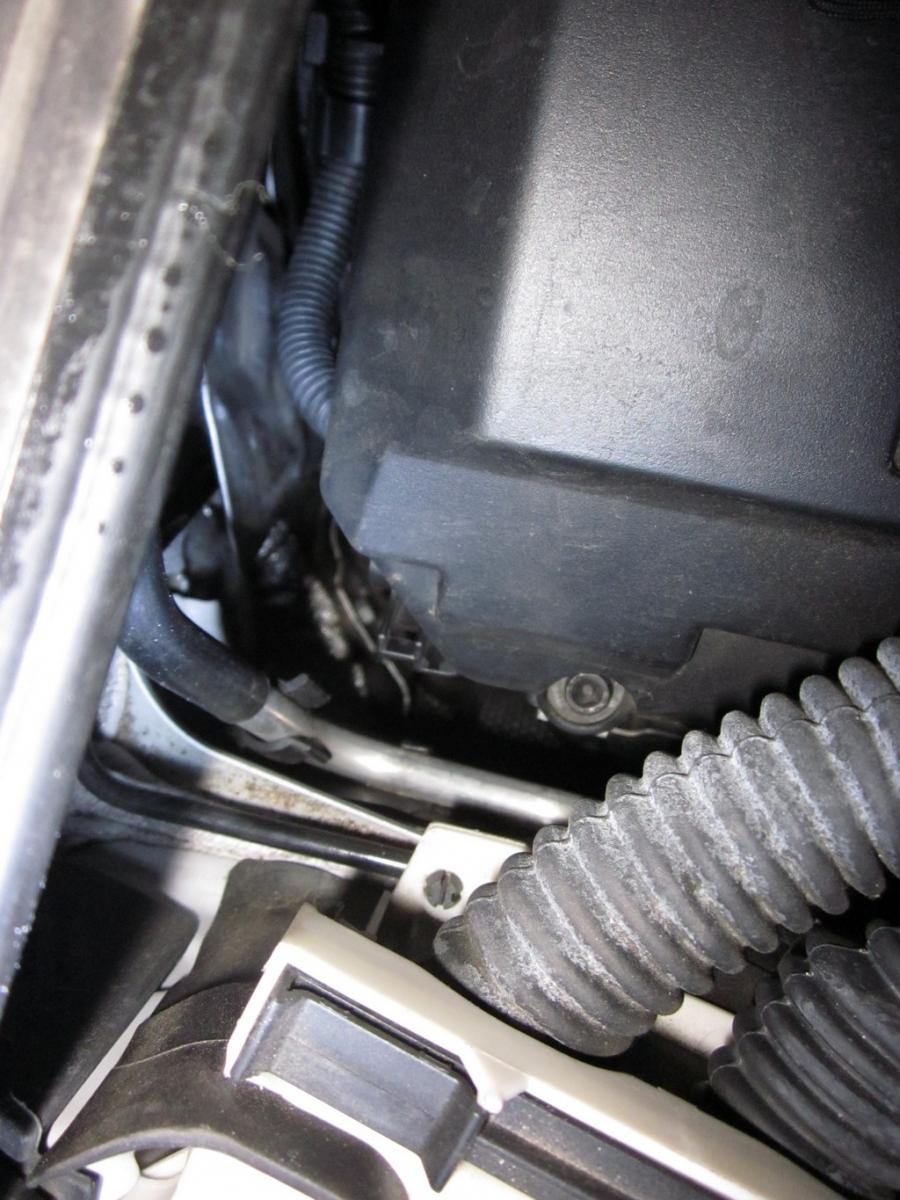

The left rear bolt is tricky to get access too. Use a long 1/4 inch ratchet extension. Also use a telescopic magnetic to "catch" the bolt from falling into the engine inner bowls.

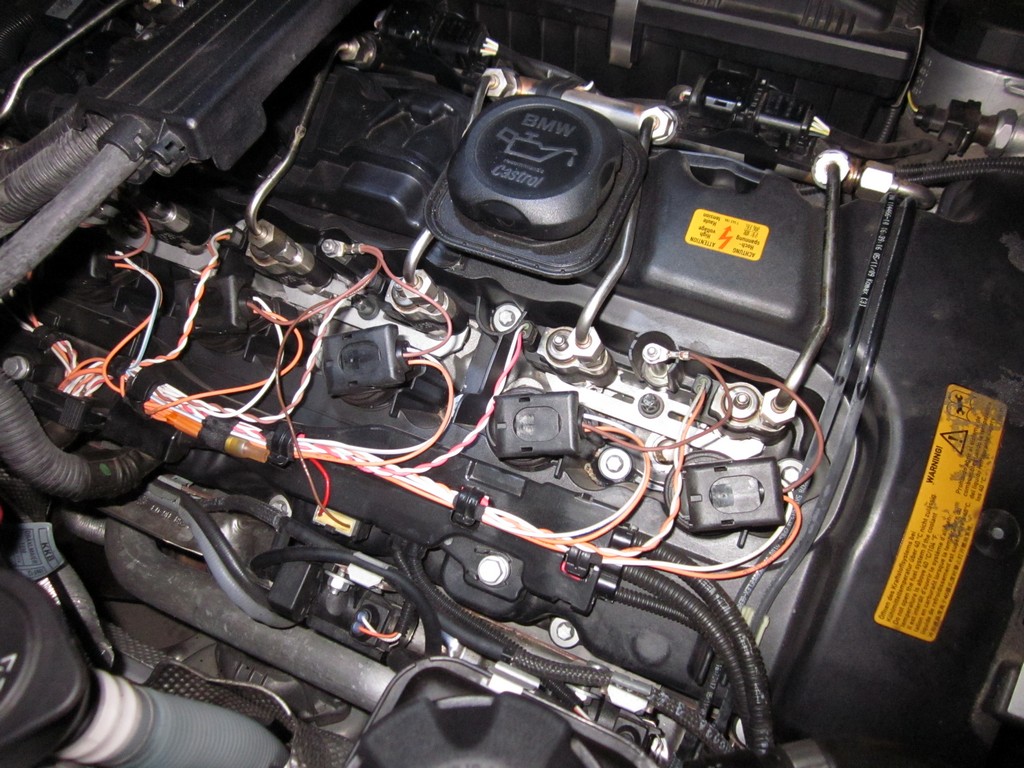

Now you can unclip the coil pack (do one at a time!) Gentley pry up on the top of the coil pack to release the electrical connection.

Then I used a short 1/2" extension to pull straight up gently and SLOWLY. You don't want to break a coil pack!

Then use your special 14mm 12point spark plug socket to unscrew the plugs. ONE at a time. Then install a new plug (dry no - anti seize), hand tighten then use your torque wrench set to 23Nm.

Name:  IMG_8110.jpg
Views: 16425
Size:  175.2 KB

Name:  IMG_8117.jpg
Views: 16398
Size:  125.8 KB

Name:  IMG_8122.jpg
Views: 15969
Size:  72.8 KB

Name:  IMG_8138.jpg
Views: 16814
Size:  149.7 KB

Name:  IMG_8144.jpg
Views: 16115
Size:  192.0 KB

Name:  IMG_8146.jpg
Views: 16065
Size:  179.8 KB

Name:  IMG_8148.jpg
Views: 15765
Size:  205.1 KB

Name:  IMG_8150.jpg
Views: 15690
Size:  140.5 KB

Name:  IMG_8153.jpg
Views: 15718
Size:  129.6 KB

Name:  IMG_8154.jpg
Views: 15660
Size:  165.3 KB

Name:  IMG_8157.jpg
Views: 15563
Size:  183.0 KB

Name:  IMG_8158.jpg
Views: 15588
Size:  170.2 KB

Name:  IMG_8159.jpg
Views: 15574
Size:  200.0 KB

Name:  IMG_8160.jpg
Views: 15726
Size:  169.8 KB

Name:  IMG_8161.jpg
Views: 15609
Size:  192.1 KB

Name:  IMG_8162.jpg
Views: 15416
Size:  212.6 KB

Name:  IMG_8164.jpg
Views: 15460
Size:  208.9 KB

Name:  IMG_8165.jpg
Views: 15469
Size:  218.7 KB

Name:  IMG_8166.jpg
Views: 15449
Size:  205.0 KB

Name:  IMG_8167.jpg
Views: 15449
Size:  209.4 KB

use your megnetic pick up tool to catch the 5mm allen bolt incase it comes off of your 1/4 ratchet drive.
Name:  IMG_8168.jpg
Views: 15300
Size:  132.0 KB

Name:  IMG_8171.jpg
Views: 15297
Size:  219.0 KB

Name:  IMG_8172.jpg
Views: 15244
Size:  194.7 KB

Name:  IMG_8173.jpg
Views: 15271
Size:  217.1 KB

Name:  IMG_8175.jpg
Views: 15242
Size:  241.6 KB

Name:  IMG_8177.jpg
Views: 15136
Size:  183.9 KB

Name:  IMG_8178.jpg
Views: 15661
Size:  234.4 KB

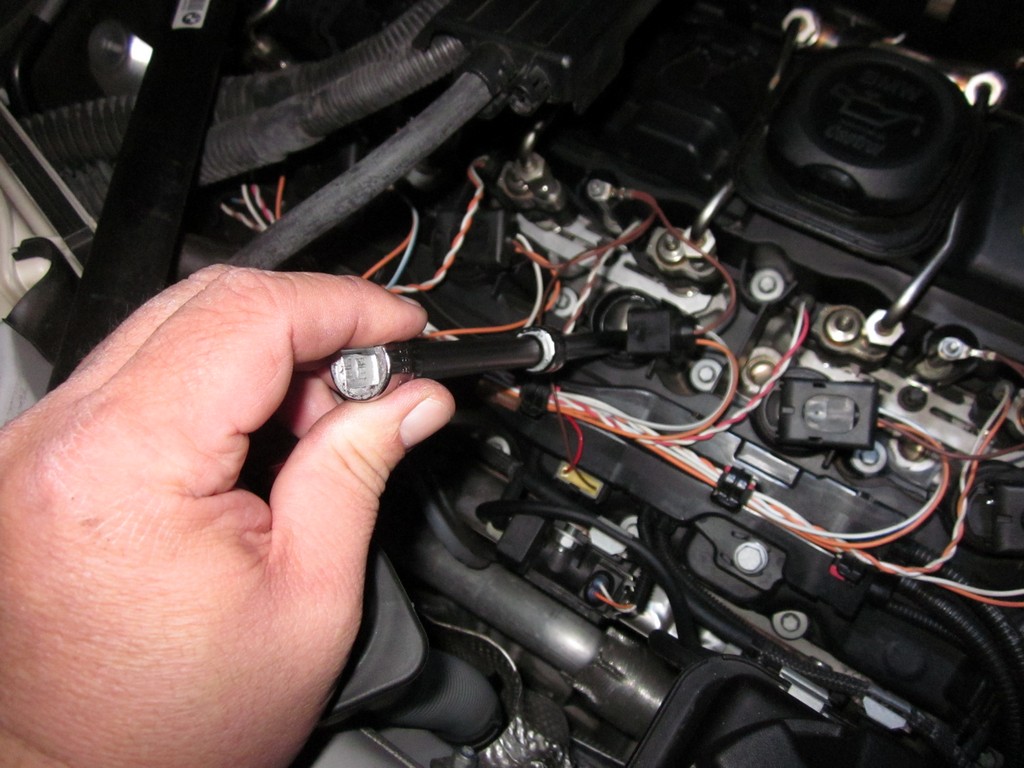

use a short 1/2 drive ratchet extension to pull the coil pack(s) STRAIGH UP with force. SLOWLY and gently pull them straight up!
Name:  IMG_8181.jpg
Views: 15350
Size:  203.5 KB

Name:  IMG_8183.jpg
Views: 15108
Size:  118.0 KB

Name:  IMG_8184.jpg
Views: 15381
Size:  210.3 KB

Last edited by Dackelone; 10-26-2011 at 07:24 AM.
Dackelone is offline   Germany
0
Reply With Quote
      10-25-2011, 12:14 PM   #2
Dackelone
Moderator

Dackelone's Avatar

Drives: 135i Silber mit/Rot 6MT N54
Join Date: Feb 2010
Location: Bayern, Germany

Posts: 16,202
iTrader: (1)

more...

Name:  IMG_8185.jpg
Views: 15024
Size:  209.5 KB

Name:  IMG_8191.jpg
Views: 15010
Size:  207.8 KB

Name:  IMG_8194.jpg
Views: 15000
Size:  167.4 KB

Name:  IMG_8199.jpg
Views: 14969
Size:  67.0 KB

Name:  IMG_8207.jpg
Views: 15018
Size:  141.2 KB

Name:  IMG_8208.jpg
Views: 14933
Size:  117.8 KB

Name:  IMG_8211.jpg
Views: 14928
Size:  140.2 KB

Name:  IMG_8212.jpg
Views: 14882
Size:  140.6 KB

Name:  IMG_8215.jpg
Views: 14908
Size:  185.0 KB

Name:  IMG_8217.jpg
Views: 14918
Size:  138.9 KB

Name:  IMG_8220.jpg
Views: 14817
Size:  183.6 KB

Name:  IMG_8222.jpg
Views: 14824
Size:  179.2 KB

Name:  IMG_8224.jpg
Views: 14826
Size:  234.3 KB

coil packs part number...
Name:  IMG_8228.jpg
Views: 14845
Size:  170.8 KB

Name:  IMG_8229.jpg
Views: 14899
Size:  158.6 KB

Name:  IMG_8241.jpg
Views: 14775
Size:  220.6 KB

Name:  IMG_8242.jpg
Views: 14826
Size:  175.8 KB

Name:  IMG_8254.jpg
Views: 14750
Size:  159.0 KB

Name:  IMG_8257.jpg
Views: 14746
Size:  134.2 KB

Name:  IMG_8261.jpg
Views: 14717
Size:  173.9 KB



UPDATE: Cobb has made this cool video showing you basically how to change your plugs & coils...


Last edited by Dackelone; 10-26-2011 at 07:29 AM.
Dackelone is offline   Germany
0
Reply With Quote
      10-25-2011, 05:27 PM   #3
Guam135i
Private First Class

Guam135i's Avatar

Drives: 08 BMW 135i, 08 128 Cab
Join Date: Oct 2011
Location: Guam

Posts: 165
iTrader: (0)

Thanks
__________________

70 Morris Cooper S * 08 BMW 135i Coupe * 08 BMW 128i Convertible * 03 BMW 525i Touring
Guam135i is offline   Guam
0
Reply With Quote
      10-25-2011, 07:33 PM   #4
BMW86
Major General

Drives: 135i CLA45 AMG Ninja
Join Date: Jul 2008
Location: Australia

Posts: 8,935
iTrader: (0)

Thanks for the comprehensive write up Dackel. You're an asset to the forum

I'll be using this in a couple of months time
__________________
BMW 135i N54 TWIN TURBO
Quarter Mile 12.173@113.70mph - Street Tyres
Queensland Raceway Sprint 1:01:22 - Street Tyres
Queensland Raceway Clubman 1:04:74 - Street Tyres
Lakeside Raceway 1:03:97 - Street Tyres
BMW86 is offline   Australia
0
Reply With Quote
      10-26-2011, 02:09 AM   #5
RimasRS
Colonel

RimasRS's Avatar

Drives: 135i MT 2009 AW
Join Date: Sep 2010
Location: Europe

Posts: 2,396
iTrader: (0)

How many km's you had on your sparks?
RimasRS is offline
0
Reply With Quote
      10-26-2011, 07:06 AM   #6
Dackelone
Moderator

Dackelone's Avatar

Drives: 135i Silber mit/Rot 6MT N54
Join Date: Feb 2010
Location: Bayern, Germany

Posts: 16,202
iTrader: (1)

Quote:
Originally Posted by RimasRS View Post
How many km's you had on your sparks?
65K km's


BMW AG says to change the spark plugs at 67K kms and then every 60K kms. Here is a decall/label from a 335i with the PPK...

Name:  IMG_2571.jpg
Views: 14989
Size:  80.9 KB
Dackelone is offline   Germany
0
Reply With Quote
      10-26-2011, 07:25 AM   #7
Ian///M
Major General

Ian///M's Avatar

Drives: 1M
Join Date: Mar 2011
Location: AU

Posts: 6,247
iTrader: (0)

Great write up!
__________________
BMW 1M VO - Cobb + PTF e-Tune, Akrapovic wireless, MadDad mids, ETS 5" FMIC, ER CP, TurboSmart PB DV's, SSK, CDV, OCC, AWRON Gauge, Hankook RS-3's, Vorshlag Camber plates
Ian///M is offline   No_Country
0
Reply With Quote
      10-31-2011, 03:23 PM   #8
james33
Private First Class

Drives: 2008 E93 M3
Join Date: Mar 2010
Location: Memphis, TN

Posts: 116
iTrader: (0)

Why no anti-seize? I've used it on all cars when I've changed plugs. I would hate for one to seize up and break when trying to remove it....
james33 is offline
0
Reply With Quote
      10-31-2011, 03:51 PM   #9
Dackelone
Moderator

Dackelone's Avatar

Drives: 135i Silber mit/Rot 6MT N54
Join Date: Feb 2010
Location: Bayern, Germany

Posts: 16,202
iTrader: (1)

Quote:
Originally Posted by james33 View Post
Why no anti-seize? I've used it on all cars when I've changed plugs. I would hate for one to seize up and break when trying to remove it....
BMW AG says to put them in with out any anti-seize. I think that is bc of conduction. I know everyone in the states uses anti-seize... but over here no one uses it. I asked my guys at the BMW dealership and a few indi shops. No one uses anti-seize.

I put my new plugs in dry (w/o anti-seize). I can sleep at night just fine.
Dackelone is offline   Germany
0
Reply With Quote
      11-02-2011, 06:53 AM   #10
SilverII
Colonel

Drives: '11 335IS
Join Date: Jun 2010
Location: DFW

Posts: 2,336
iTrader: (0)

Garage List
2011 BMW 335IS  [4.83]
nice job
SilverII is offline   United_States
0
Reply With Quote
      11-02-2011, 07:38 AM   #11
Evice
Major

Evice's Avatar

Drives: BSM 128i M-sport and '98 M3
Join Date: Apr 2009
Location: Somewhere here

Posts: 1,430
iTrader: (1)

Good job on write up - Your spark plugged looked nice for 65k.
__________________
-- '09 BSM 128i - '98 E36 M3 - BMWCR IS #718
BMWCCA Instructor & 2013 BMWCR I-Sport National Champion.
http://www.youtube.com/alisalih
Evice is offline
0
Reply With Quote
      11-02-2011, 11:55 AM   #12
Dackelone
Moderator

Dackelone's Avatar

Drives: 135i Silber mit/Rot 6MT N54
Join Date: Feb 2010
Location: Bayern, Germany

Posts: 16,202
iTrader: (1)

Quote:
Originally Posted by Evice View Post
Good job on write up - Your spark plugged looked nice for 65k.

Thanks. Btw... 65K kms = 40K miles
Dackelone is offline   Germany
0
Reply With Quote
      11-04-2011, 10:06 AM   #13
Groundpilot
Major

Groundpilot's Avatar

Drives: 135I DCT , e92 M3 DCT, Audi A6
Join Date: Mar 2010
Location: long island,ny

Posts: 1,204
iTrader: (0)

Send a message via ICQ to Groundpilot
Nice write up.
OP, do you think they have to be changed sooner than 40,000 miles if one tracks the car lets say 8-10 times a year?
__________________

David
Groundpilot is offline   United_States
0
Reply With Quote
      11-04-2011, 11:32 AM   #14
Dackelone
Moderator

Dackelone's Avatar

Drives: 135i Silber mit/Rot 6MT N54
Join Date: Feb 2010
Location: Bayern, Germany

Posts: 16,202
iTrader: (1)

Quote:
Originally Posted by M3 09 AND135I 11 View Post
Nice write up.
OP, do you think they have to be changed sooner than 40,000 miles if one tracks the car lets say 8-10 times a year?

I think changing the plugs every 40K miles is fine. Even with a tune or hard use. I would also make sure your air filter is clean and no sand or rocks in the filter housing.


135i air filter replacement DIY...

http://www.1addicts.com/forums/showt...air+filter+diy


Dackel
Dackelone is offline   Germany
0
Reply With Quote
      11-06-2011, 10:46 PM   #15
ken1137
Brigadier General

ken1137's Avatar

Drives: a slow 2009 e90 335i
Join Date: Jun 2011
Location: Chicago

Posts: 3,697
iTrader: (7)

Garage List
2009 e90 335i  [3.20]
Nice write up....will be changing mine if BMW does not cover it under maintenance next year.
__________________

BMWCCA member
ken1137 is offline   United_States
0
Reply With Quote
      11-07-2011, 05:50 AM   #16
dh58
Lieutenant

Drives: 135i
Join Date: Aug 2010
Location: Bunker in Sydney

Posts: 482
iTrader: (0)

Great step by step Dackelone.. I've learnt so much about my 135i from you, this is just another to add to the list.. Cheers!!
dh58 is offline   Australia
0
Reply With Quote
      01-23-2012, 07:32 PM   #17
Guam135i
Private First Class

Guam135i's Avatar

Drives: 08 BMW 135i, 08 128 Cab
Join Date: Oct 2011
Location: Guam

Posts: 165
iTrader: (0)

subscribed
__________________

70 Morris Cooper S * 08 BMW 135i Coupe * 08 BMW 128i Convertible * 03 BMW 525i Touring
Guam135i is offline   Guam
0
Reply With Quote
      02-01-2012, 12:58 AM   #18
E92murdered
Lieutenant Colonel

E92murdered's Avatar

Drives: 335i
Join Date: Nov 2008
Location: san diego

Posts: 1,516
iTrader: (5)

amazing thread thanks
__________________
E92murdered is offline
0
Reply With Quote
      02-05-2012, 12:04 PM   #19
cedavis34
Private

Drives:
Join Date: Apr 2008

Posts: 53
iTrader: (0)

Thanks for the excellent write-up, I have 4 of 6 done, and I have a question for those of you that have done this. What did you guys do with the little bit of metal flakes/dirt thats down in the channel after you remove the old plug but before you put in the new one?

It would be very difficult to photograph so that's why I'm not posting a picture, but I worry that it might affect the seal of the spark plug washer to the head? My vacuum isn't narrow enough to get down there, but I could rig something up. Did you guys worry about it? I haven't done anything about it, but I'm starting to question if I should have.

I also found that a mouse had been chewing on one of my coil wires, which is ridiculous because this car is a daily driver.

Thanks for your help!
cedavis34 is offline
0
Reply With Quote
      02-05-2012, 02:21 PM   #20
Dackelone
Moderator

Dackelone's Avatar

Drives: 135i Silber mit/Rot 6MT N54
Join Date: Feb 2010
Location: Bayern, Germany

Posts: 16,202
iTrader: (1)

Quote:
Originally Posted by cedavis34 View Post
Thanks for the excellent write-up, I have 4 of 6 done, and I have a question for those of you that have done this. What did you guys do with the little bit of metal flakes/dirt thats down in the channel after you remove the old plug but before you put in the new one?

It would be very difficult to photograph so that's why I'm not posting a picture, but I worry that it might affect the seal of the spark plug washer to the head? My vacuum isn't narrow enough to get down there, but I could rig something up. Did you guys worry about it? I haven't done anything about it, but I'm starting to question if I should have.

I also found that a mouse had been chewing on one of my coil wires, which is ridiculous because this car is a daily driver.

Thanks for your help!
I did not worry about it because I did not have much "crud' down there in the holes on my car. I think if I did... yea... I would jurry rig something up with a vacuum cleaner. Maybe take a small paper tube or plastic tube from a hardware store. I think most techs just jam new plugs in the car without giving this a second thought. You could always use some compressed air shot down the holes to remove the "crud".


As for your mouse damage... be carefull, espcially under the engine(belly pan) where the wires for the O2 sensor and oil level sensors are. These rodents can do major damage. The Germans hang toilet bowl cleaners under the engine hood or even have these electronic boxes that "chirp" high freq that drive these chewing annimals away.
Dackelone is offline   Germany
0
Reply With Quote
      02-05-2012, 02:42 PM   #21
cedavis34
Private

Drives:
Join Date: Apr 2008

Posts: 53
iTrader: (0)

Quote:
Originally Posted by Dackelone View Post
I did not worry about it because I did not have much "crud' down there in the holes on my car. I think if I did... yea... I would jurry rig something up with a vacuum cleaner. Maybe take a small paper tube or plastic tube from a hardware store. I think most techs just jam new plugs in the car without giving this a second thought. You could always use some compressed air shot down the holes to remove the "crud".


As for your mouse damage... be carefull, espcially under the engine(belly pan) where the wires for the O2 sensor and oil level sensors are. These rodents can do major damage. The Germans hang toilet bowl cleaners under the engine hood or even have these electronic boxes that "chirp" high freq that drive these chewing annimals away.
I ended up not doing much about the crud, for number 4 I used the house vac because it had a smaller nozzle, and it appeared to get some of it, but not all. Number 5 had a smaller amount, so I gave it a blast from my lungs, and number 6 had even fewer still, so I did nothing.

I fired the car up without the engine cover on, and I can't believe how loud the engine was without that cover and the associated foam. I build Hondas for a living, and our little 4's do not have any sound deadening like that around the engine, and they do not make anywhere near that amount of noise. I know I'm talking about completely different ends of the spectrum for engines, but wow. For it's part, the foam does a great job blocking the noise.

I need to try and find the pin removal tool for our coils so I can pull the wires and get some heat shrink around them. One wire is kind of bad, the rest just have little grooves. I tried cutting spirals into the heat shrink, but when heated they just unraveled. I think they'll be ok for the time being, because I think the damage probably happened two years ago when I lived next to a cornfield and drove my S2000 a lot more frequently. I've never seen any mouse droppings at my new house, so my guess is it's been like that for 2 years. That's at least what I'll tell myself so I don't worry too much.

Thanks again for the write-up. It worked great!

Now it's time to go downtown for the Super Bowl. Go Giants!
cedavis34 is offline
0
Reply With Quote
      02-05-2012, 03:10 PM   #22
Dackelone
Moderator

Dackelone's Avatar

Drives: 135i Silber mit/Rot 6MT N54
Join Date: Feb 2010
Location: Bayern, Germany

Posts: 16,202
iTrader: (1)

Quote:
Originally Posted by cedavis34 View Post
I fired the car up without the engine cover on, and I can't believe how loud the engine was without that cover and the associated foam. I build Hondas for a living, and our little 4's do not have any sound deadening like that around the engine, and they do not make anywhere near that amount of noise. I know I'm talking about completely different ends of the spectrum for engines, but wow. For it's part, the foam does a great job blocking the noise.

I did the exact same thing and had the same reaction to the loud ticking noises. I guess it is because our engines are direct injection while most engines are not. Without that foam pad the noise is so much louder! lol


Btw... I think AMP probably makes the electrical pin(out) tool you are looking for. But even SnapOn or the like should make a compatible pin removal tool.
Dackelone is offline   Germany
0
Reply With Quote
Post Reply

Bookmarks

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump


All times are GMT -5. The time now is 06:56 PM.




1addicts
Powered by vBulletin® Version 3.7.0
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
1Addicts.com, BIMMERPOST.com, E90Post.com, F30Post.com, M3Post.com, ZPost.com, 5Post.com, 6Post.com, 7Post.com, XBimmers.com logo and trademark are properties of BIMMERPOST
