      08-20-2013, 08:57 AM   #1
saurabh_turingMS
First Lieutenant
saurabh_turingMS's Avatar
Australia
12
Rep
313
Posts

Drives: 1M AW (F10 520D MSport - gone)
Join Date: Feb 2011
Location: Sydney

iTrader: (0)

Arrow BMWP Short Shift

Thanks to some advice from friends in Singapore, I had just the shift lever from the BMWP SSK installed in my car i.e. part#25110434217

The shift action is definitely shorter and much more direct. It took me a week to get used to it, but once I had CDV it felt perfect. I think it suits the character of the car better than stock, plus peace of mind of genuine BMW part.

It's not tricky, just a bit involved with mid-pipe & driveshaft needing to come out. Pete@Advan (Skycat) is across the install detail and can help anyone else out.

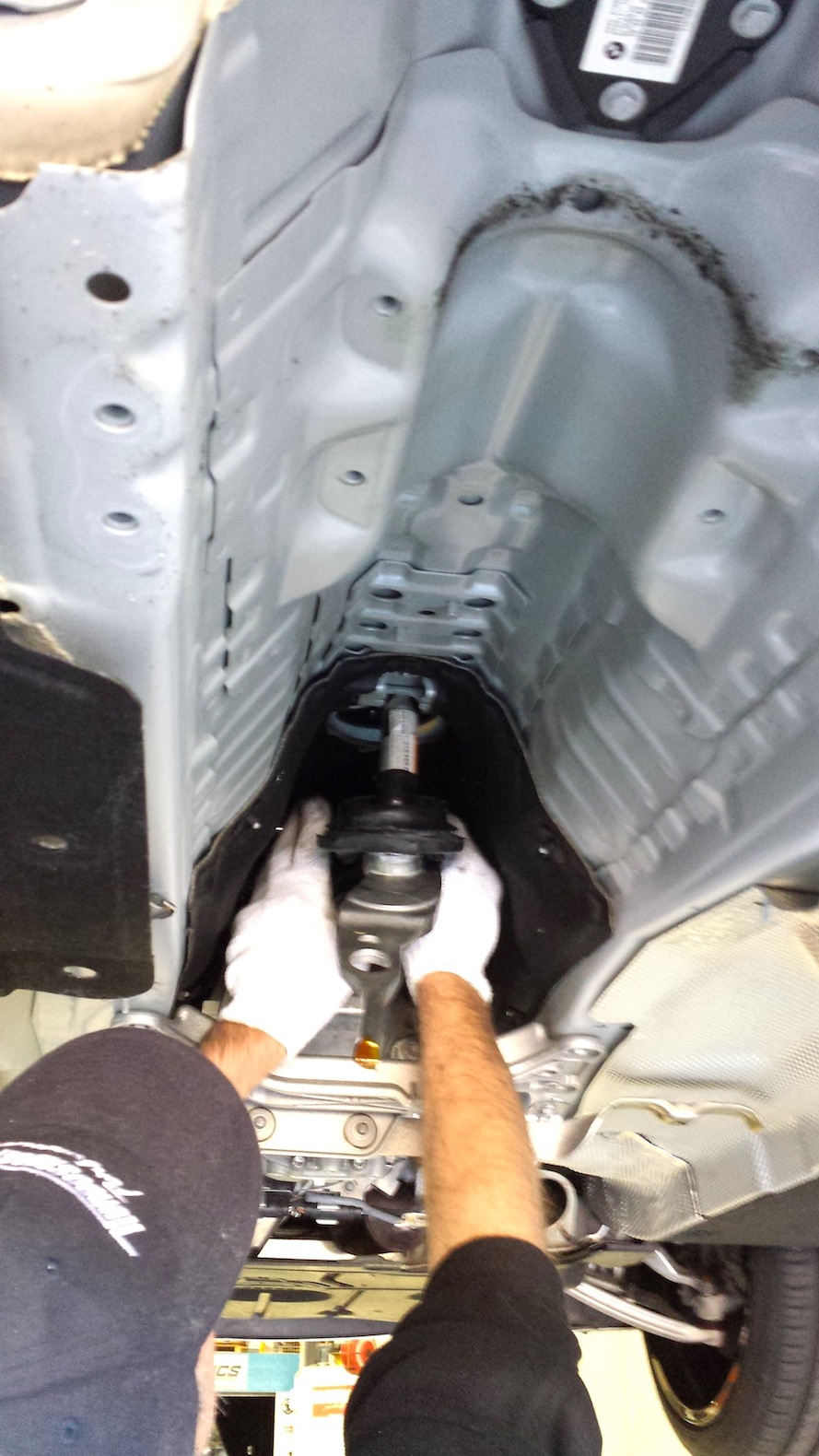

Here are some pics...
Attached Images

Appreciate 0
      08-20-2013, 09:14 AM   #2
RoadRunner///M
Major General
RoadRunner///M's Avatar
No_Country
210
Rep
6,427
Posts

Drives: 1M (Sold), M3 F80
Join Date: Mar 2011
Location: Sydney, Oz

iTrader: (0)

Thanks Saurabh. Ordered mine yesterday after seeing yours over the weekend. Great OEM mod. Can't wait to get this installed as I have always felt the throw is just a bit too long for the 1M, however still nowhere as long as an E9x M3 MT.

I actually also ordered a new plastic bearing and 2 clips upon recommendation from other sources when fitting this.

Parts are:
1x shift arm lever 25110434217
1x bearing for lever 25111220600 (optional)
2 x clips 25117571899 (optional)

I will take before/after measurements of throws and height and post them
__________________
BMW F80 M3 DCT - Silverstone II - AA Mids, Active 8 tune
Appreciate 0
      08-20-2013, 10:27 AM   #3
bmw13
Captain
bmw13's Avatar
United_States
53
Rep
679
Posts

Drives: 1M - GIAC:S2
Join Date: Jul 2009
Location: Boca Raton, FL

iTrader: (0)

my shift knob is always sliding up/ out of place just enough to make a difference for me to notice. I think I may go this route! Very cool and thanks for sharing!
__________________
Follow my car/ life via Instagram @rdauito
2011 E82 1M #215 of 740
http://www.1addicts.com/forums/showthread.php?t=877009
Appreciate 0
      08-20-2013, 11:16 AM   #4
bdaddylo
Major
bdaddylo's Avatar
United_States
84
Rep
1,447
Posts

Drives: 2011 E82 1M
Join Date: Dec 2010
Location: Houston, TX

iTrader: (3)

Garage List
Quote:
Originally Posted by bmw13 View Post
my shift knob is always sliding up/ out of place just enough to make a difference for me to notice. I think I may go this route! Very cool and thanks for sharing!
FWIW most like the UUC over the BMW performance SSK.
__________________
_______________________

1991 E30 M3/Brilliantrot
2011 1 Series M Coupe/VO/Fully Loaded/Bloated/Stoptech ST-40 Trophy Street
Appreciate 0
      08-20-2013, 12:41 PM   #5
yemski
Lieutenant
yemski's Avatar
United_States
20
Rep
491
Posts

Drives: 2011 1M
Join Date: Oct 2006
Location: Bay Area

iTrader: (2)

Garage List
2011 1M Coupe  [0.00]
are the shifts a lot less smooth (or more notchy) with either the BMWP or UUC? Any comments from owners?
Appreciate 0
      08-20-2013, 05:25 PM   #6
saurabh_turingMS
First Lieutenant
saurabh_turingMS's Avatar
Australia
12
Rep
313
Posts

Drives: 1M AW (F10 520D MSport - gone)
Join Date: Feb 2011
Location: Sydney

iTrader: (0)

BMWP is slightly notchier, but not ridiculously so.
Appreciate 0
      08-20-2013, 06:02 PM   #7
Dackelone
European Editor
Dackelone's Avatar
Germany
6008
Rep
21,911
Posts

Drives: N54 e82
Join Date: Feb 2010
Location: Bayern, Germany

iTrader: (1)

Quote:
Originally Posted by yemski View Post
are the shifts a lot less smooth (or more notchy) with either the BMWP or UUC? Any comments from owners?
At first yes, but after a few thousand miles the shifter breaks in very nicely. I have had my Perf SSK on my 135i for 50K kms and I really love it. BMW should have built the car with it.
__________________
Appreciate 0
      08-20-2013, 10:39 PM   #8
oystero
Lieutenant
Australia
12
Rep
445
Posts

Drives: AW 1M, E90 320d
Join Date: Jan 2012
Location: Melbourne

iTrader: (0)

Thanks for sharing Saurabh.. Looks great
Appreciate 0
      08-22-2013, 12:47 AM   #9
yemski
Lieutenant
yemski's Avatar
United_States
20
Rep
491
Posts

Drives: 2011 1M
Join Date: Oct 2006
Location: Bay Area

iTrader: (2)

Garage List
2011 1M Coupe  [0.00]
Quote:
Originally Posted by saurabh_turingMS View Post
BMWP is slightly notchier, but not ridiculously so.
Quote:
Originally Posted by Dackelone View Post
At first yes, but after a few thousand miles the shifter breaks in very nicely. I have had my Perf SSK on my 135i for 50K kms and I really love it. BMW should have built the car with it.
nice thanks for the feedback! I'll probably be looking into the BMWP short shift kit
Appreciate 0
      08-22-2013, 01:24 AM   #10
lightning
First Lieutenant
Singapore
26
Rep
322
Posts

Drives: 1M Pure S2
Join Date: Sep 2009
Location: Singapore

iTrader: (0)

Quote:
Originally Posted by saurabh_turingMS View Post
Thanks to some advice from friends in Singapore, I had just the shift lever from the BMWP SSK installed in my car i.e. part#25110434217

The shift action is definitely shorter and much more direct. It took me a week to get used to it, but once I had CDV it felt perfect. I think it suits the character of the car better than stock, plus peace of mind of genuine BMW part.

It's not tricky, just a bit involved with mid-pipe & driveshaft needing to come out. Pete@Advan (Skycat) is across the install detail and can help anyone else out.

Here are some pics...

Glad to see you sharing about this in the forum!
Appreciate 0
      08-29-2013, 04:30 PM   #11
saurabh_turingMS
First Lieutenant
saurabh_turingMS's Avatar
Australia
12
Rep
313
Posts

Drives: 1M AW (F10 520D MSport - gone)
Join Date: Feb 2011
Location: Sydney

iTrader: (0)

Quote:
Originally Posted by lightning
Quote:
Originally Posted by saurabh_turingMS View Post
Thanks to some advice from friends in Singapore, I had just the shift lever from the BMWP SSK installed in my car i.e. part#25110434217

The shift action is definitely shorter and much more direct. It took me a week to get used to it, but once I had CDV it felt perfect. I think it suits the character of the car better than stock, plus peace of mind of genuine BMW part.

It's not tricky, just a bit involved with mid-pipe & driveshaft needing to come out. Pete@Advan (Skycat) is across the install detail and can help anyone else out.

Here are some pics...

Glad to see you sharing about this in the forum!
No, no...Thank you for sharing
Appreciate 0
      08-29-2013, 05:49 PM   #12
Dackelone
European Editor
Dackelone's Avatar
Germany
6008
Rep
21,911
Posts

Drives: N54 e82
Join Date: Feb 2010
Location: Bayern, Germany

iTrader: (1)

Quote:
Originally Posted by saurabh_turingMS View Post
No, no...Thank you for sharing
Btw... maybe you could measure your shifter throws now with the Perf shifter...

Here is what I found out in past threads...

MT shifter throws...
N54 = 80 mm's
N54 w/Perf SSK = 55 mm's
N55 = 70 mm's

I don't think anyone has measured the throws on a 1M before. But since the 1M uses the same trans(and linkage) as a N55 it should be 70 mm's stock.

I am curious how short your throws are now with the Perf shifter on your 1M.

Thanks,
Dackel
__________________
Appreciate 0
      08-29-2013, 05:50 PM   #13
RoadRunner///M
Major General
RoadRunner///M's Avatar
No_Country
210
Rep
6,427
Posts

Drives: 1M (Sold), M3 F80
Join Date: Mar 2011
Location: Sydney, Oz

iTrader: (0)

Quote:
Originally Posted by Dackelone View Post
Btw... maybe you could measure your shifter throws now with the Perf shifter...

Here is what I found out in past threads...

MT shifter throws...
N54 = 80 mm's
N54 w/Perf SSK = 55 mm's
N55 = 70 mm's

I don't think anyone has measured the throws on a 1M before. But since the 1M uses the same trans(and linkage) as a N55 it should be 70 mm's stock.

I am curious how short your throws are now with the Perf shifter on your 1M.

Thanks,
Dackel
Mine is fitted next week and will take photos of before and after measurements
__________________
BMW F80 M3 DCT - Silverstone II - AA Mids, Active 8 tune
Appreciate 0
      08-29-2013, 05:59 PM   #14
Dackelone
European Editor
Dackelone's Avatar
Germany
6008
Rep
21,911
Posts

Drives: N54 e82
Join Date: Feb 2010
Location: Bayern, Germany

iTrader: (1)

Quote:
Originally Posted by Ian///M View Post
Mine is fitted next week and will take photos of before and after measurements
__________________
Appreciate 0
      08-29-2013, 06:15 PM   #15
ayao
Thread killer
160
Rep
1,400
Posts

Drives: 1M
Join Date: Aug 2011
Location: CA

iTrader: (2)

Quote:
Originally Posted by Ian///M View Post
Mine is fitted next week and will take photos of before and after measurements
Please report back with impressions with regard to notchiness and shift effort...
Appreciate 0
      09-01-2013, 09:27 PM   #16
Piets94
Second Lieutenant
38
Rep
270
Posts

Drives: AW 1M
Join Date: Jun 2013
Location: Australia

iTrader: (0)

Quote:
Originally Posted by Ian///M View Post
Thanks Saurabh. Ordered mine yesterday after seeing yours over the weekend. Great OEM mod. Can't wait to get this installed as I have always felt the throw is just a bit too long for the 1M, however still nowhere as long as an E9x M3 MT.

I actually also ordered a new plastic bearing and 2 clips upon recommendation from other sources when fitting
Ian, where did you source your shift arm from? The dealer doesn't list that part number in OZ. Cheers
Appreciate 0
      09-01-2013, 09:31 PM   #17
RoadRunner///M
Major General
RoadRunner///M's Avatar
No_Country
210
Rep
6,427
Posts

Drives: 1M (Sold), M3 F80
Join Date: Mar 2011
Location: Sydney, Oz

iTrader: (0)

Quote:
Originally Posted by Piets94 View Post
Ian, where did you source your shift arm from? The dealer doesn't list that part number in OZ. Cheers
Www.GetBMWParts.com

They can't ship to Oz, so you need to use a re shipper.

I believe Turner also sell them and will ship direct http://www.turnermotorsport.com/
__________________
BMW F80 M3 DCT - Silverstone II - AA Mids, Active 8 tune
Appreciate 0
      09-02-2013, 12:56 AM   #18
Piets94
Second Lieutenant
38
Rep
270
Posts

Drives: AW 1M
Join Date: Jun 2013
Location: Australia

iTrader: (0)

Thanks Ian. Will be good to hear what your thoughts are on the shift feel. The standard shift is perfectly weighted in my opinion - wouldn't want to mess with that. The SSK in the 135i was perfect
Appreciate 0
      09-02-2013, 05:36 AM   #19
Dackelone
European Editor
Dackelone's Avatar
Germany
6008
Rep
21,911
Posts

Drives: N54 e82
Join Date: Feb 2010
Location: Bayern, Germany

iTrader: (1)

Quote:
Originally Posted by Piets94 View Post
Ian, where did you source your shift arm from? The dealer doesn't list that part number in OZ. Cheers
ANY bmw dealer should be able to order the Perf SSK lever... it IS a bmw part after all.

#5 in this link... p/n 25110434217

http://realoem.com/bmw/showparts.do?...=25&fg=95&hl=9
__________________
Appreciate 0
      09-03-2013, 07:10 AM   #20
RoadRunner///M
Major General
RoadRunner///M's Avatar
No_Country
210
Rep
6,427
Posts

Drives: 1M (Sold), M3 F80
Join Date: Mar 2011
Location: Sydney, Oz

iTrader: (0)

Fitted mine today. It is really short and firm, but good fun on gear changes. I will post up some pics soon with before and after measurements. It does sit about 1" higher. Even the dealer gave big thumbs up
__________________
BMW F80 M3 DCT - Silverstone II - AA Mids, Active 8 tune
Appreciate 0
      09-03-2013, 12:29 PM   #21
Piets94
Second Lieutenant
38
Rep
270
Posts

Drives: AW 1M
Join Date: Jun 2013
Location: Australia

iTrader: (0)

Quote:
Originally Posted by Ian///M View Post
Fitted mine today. It is really short and firm, but good fun on gear changes. I will post up some pics soon with before and after measurements. It does sit about 1" higher. Even the dealer gave big thumbs up
How does it sit 1" higher? That seems a lot. You mean the actual gear knob sits higher? Do you think that might annoy you? Looking forward to seeing the pics
Appreciate 0
      09-03-2013, 04:55 PM   #22
RoadRunner///M
Major General
RoadRunner///M's Avatar
No_Country
210
Rep
6,427
Posts

Drives: 1M (Sold), M3 F80
Join Date: Mar 2011
Location: Sydney, Oz

iTrader: (0)

Quote:
Originally Posted by Piets94 View Post
How does it sit 1" higher? That seems a lot. You mean the actual gear knob sits higher? Do you think that might annoy you? Looking forward to seeing the pics
The new shift leaver is actually longer. See photo in OP, it is the longer one. Don't think it will annoy me ergonomically, but aesthetically would look nice if lower, but certainly worth it for the shifting experience.

My car is in the workshop until next week, so will take photos then
__________________
BMW F80 M3 DCT - Silverstone II - AA Mids, Active 8 tune

Last edited by RoadRunner///M; 09-03-2013 at 05:06 PM.
Appreciate 0
